Stauff NR-630-E-10-B/4 Replaces the Stauff NR630E10B
Stauff NR-630-E-10-B/4 Replaces the Stauff NR630E10B
NR-630-E-10-B/4
Stauff
Stauff NR630E10B
Stauff
Stauff NR630E10B
Description

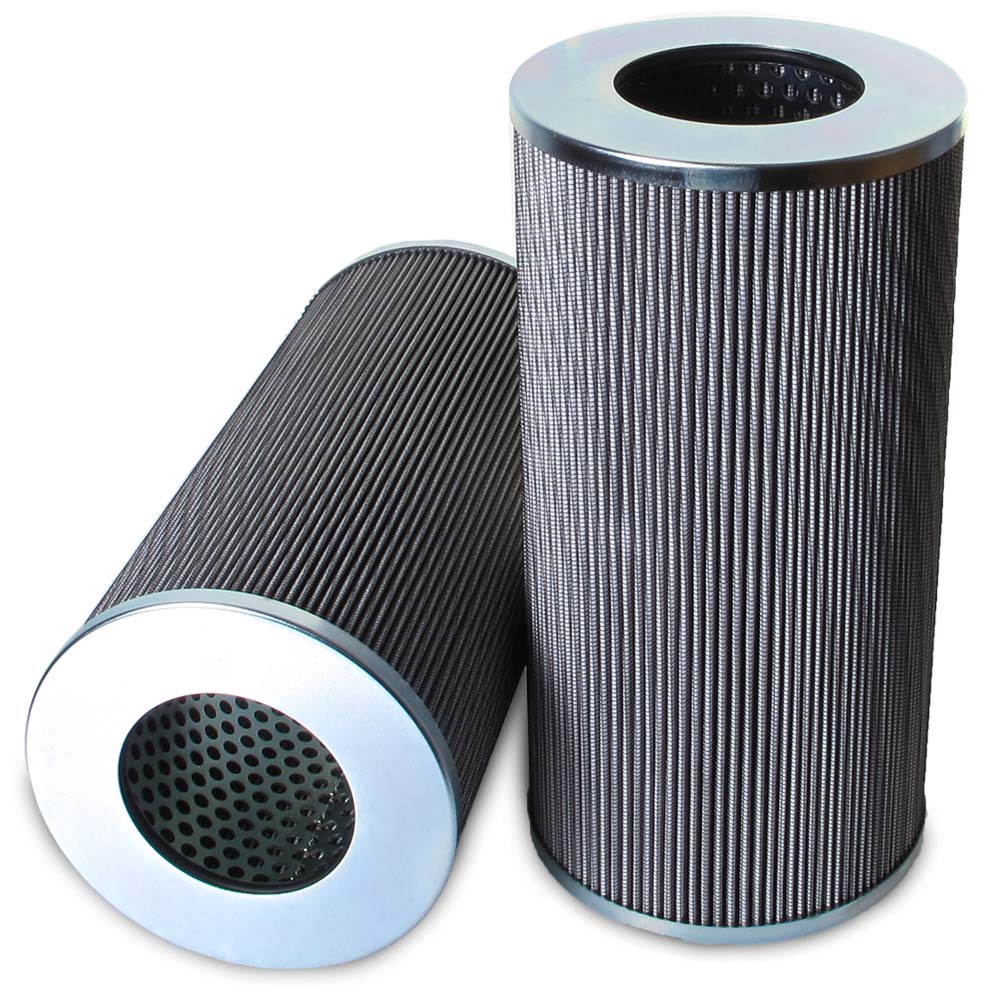

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 139,5 Inner Diameter (mm): 70,3 Length (mm): 399 Sealing: NBR, β ratio >200
Brand:
Stauff
€310,95
Price€310,95/each
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | €304,74 |
| 5 - 9 | €298,52 |
| 10+ | €292,30 |
2.29 kg
8421.99.90
Germany
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 139,5 Inner Diameter (mm): 70,3 Length (mm): 399 Sealing: NBR, β ratio >200Specification
| Style | DIN Return Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 129.0 mm |
| Inner Diameter | 70.5 mm |
| Length | 400.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 10 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
