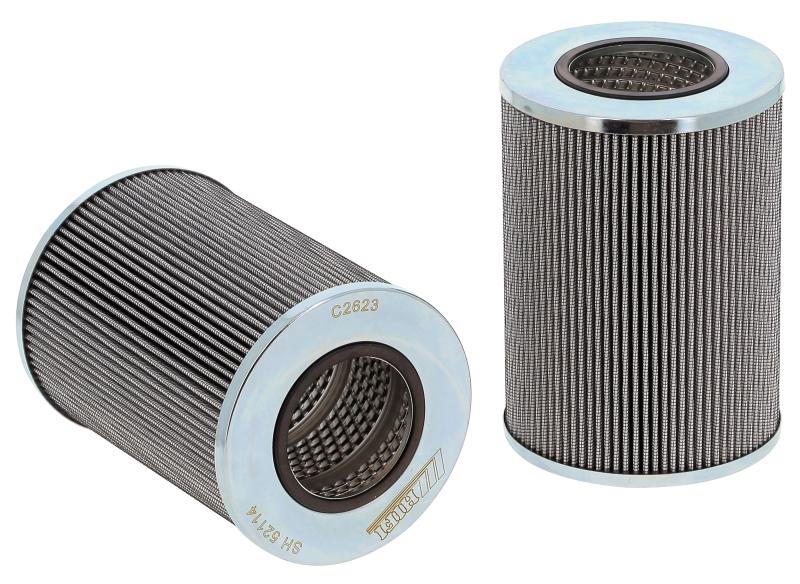

Specification

StyleReturn Filter
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 118.0 mm
Inner Diameter 59.5 mm
Length 165.0 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 8 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Argo Hytos Brand Logo

Same Fit-Form & Function

As the Genuine Argo Hytos V2121703

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 118.0 mm
Inner Diameter 59.5 mm
Length 165.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 8 BAR
Seal Nitrile
Temperature Range -30 - +100°C
